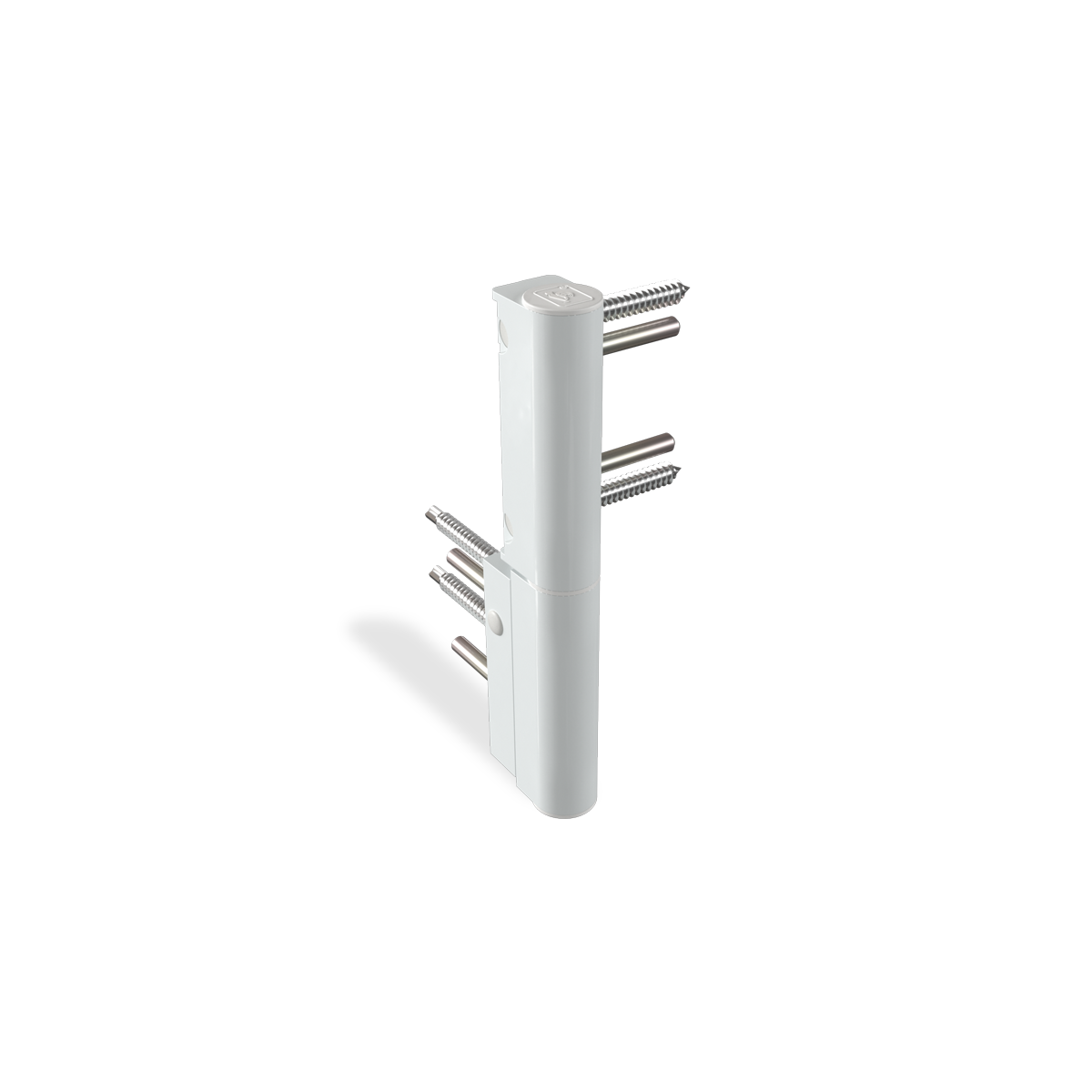

KT-RN, 2-piece
- No break in the seal
- Strong enough to support doors weighing up to 120 kg
- Very slender hinge curl of 22 mm
- No misalignment even after adjustment
- Door hinges are largely pre-assembled
- Can be used on both left or right-hand doors
The 2-piece Hahn KT-RN Rollenband for PVC doors uses the same fastening principle as its 3-piece counterpart, which allows it to be mounted with screws in the upstand and exhibits a very slender hinge curl of 22 mm. It also leaves the seal untouched, thus ensuring maintenance of the maximum insulation values. It can be adjusted very conveniently and with little efforts in six directions. Vertically and horizontally adjustable by one person. The sealing pressure of +/- 0.5 mm can be adapted by turning the bushings. Presetting the bearing bushings during pre-assembly in the workshop ensures that the door can be installed and properly aligned. As a result, on-site adjustments can be dispensed with in many cases.
And it still supports doors weighing up to 120 kg depending on the door frame situation. CE classification according to EN 1935 hinge class 14 is currently in preparation. The door hinge, which is manufactured using extruded aluminium, is delivered for the most part factory-assembled. It can be used on either (left and right) side of the door without requiring any changes. With a standard version, the KT-RN accommodates all common profile variations with a right-angled upstand of 16.5 to 26.0 mm.
Material
Constructed of extruded aluminium
Fastening method
Directly mounted in frame and door
Versions
Upstand dimension 16.5 – 26.0 mm
Load capacity
Max. 120 kg depending on the door/frame design
Adjustability
Adjustable in six directions:
• Horizontal adjustment, variable ± 3 mm
• Height adjustment, variable + 3 mm / – 1 mm
• Adjustment of sealing pressure ± 0.5 mm
Certificates in Preparation
• CE-certified according to EN 1935:2002, hinge class 14 (in testing)
• SKG 2-star (in testing)
Colours
Hinges available in EV1 and RAL colours
K72110000 = EV1 black PVC parts
K721E0000 = RAL 9010 white PVC parts
K721G0000 = RAL 9016 white PVC parts
K72150000 = RAL 8077 black PVC parts
K72140000 = RAL 9010 black PVC parts
K72160000 = RAL 9016 black PVC parts
Item number on request
KT-RN, 2-piece: 4 7 7 0 1 0/4(5*) 1 14
service class
4
Class 4: Very heavy usage. Hinges for doors that are subject to frequent and heavy usage.
durability
7
Class 7: 200,000 test cycles (only door hinges)
weight of test door
7
Class 7: Weight of test door 160 kg
fire resistance
0
class 0: not suited for use on fire and smoke-retardant doors (EN 1634-1)
safty of use
1
The fundamental requirements on the safety of use must be fulfilled by all hinges. That's why there is only class 1 here.
corrosion resistance
0/4(5*)
intrusion protection
1
Class 1: Suited for use on intrustion-resistant doors based on the rating of the hinges' contribution to intrusion resistance for the respective intrusion-resistant door.
hinge class
14
Class 14: Hinges of this class fulfil demands due to very heavy usage
Suited for installation on doors placed along emergency escape routes
* Grade 5 in accordance with EN 1670:2007 / AC:2008
