The Hahn KT-V 6R premium hinges accentuate the beauty of attractive doors with their subtle design and stand out because of their efficient, high-calibre installation technology. Hinges of the series achieved hinge class 14 rating for very high loads during testing for the CE labeling and thus may also be installed on emergency exit doors. A good fit is also ensured even with doors that have high heat insulating chambers. The hinges are approved for doors weighing up to 160 kg, depending on design of door frame. All adjustments can be performed on site by one person without having to raise or remove the door. As tried, tested and proven in real world applications, the door hinge can be adjusted variably in six directions.
Material
Made of extruded aluminium
Fastening methods
Direct screw connection in frame and door, optionally available with Hahn step screw
Available with KT-FIX fastener
Versions

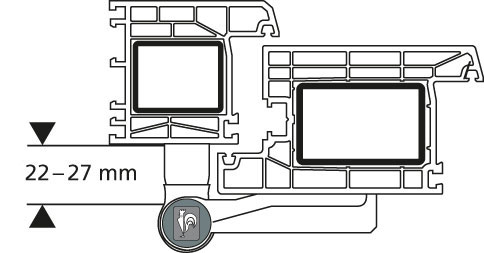

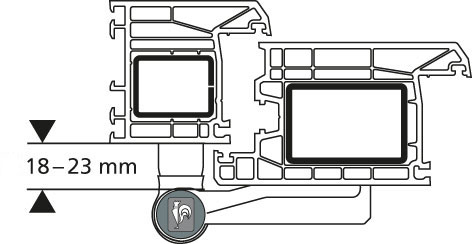

5 upstand dimension ranges: 15 - 20 mm, 16,5 - 21,5 mm, 18 - 23 mm, 20 - 25 mm and 22 - 27 mm
Load capacity
Depending of profile section design max. 160 kg
Adjustability
Without raising or removing the door adjustable in 6 directions
Certifications
CE certified according to EN 1935:2002, hinge class 14
SKG 2 stars
Colours
Hinges in RAL-colours deliverable
P570E0000 = RAL 9010
P570G0000 = RAL 9016
P57050000 = RAL 8077
P570E0F00 = RAL 9010
P570G0F00 = RAL 9016
P57050F00 = RAL 8077
P575E0000 = RAL 9010
P575G0000 = RAL 9016
P57550000 = RAL 8077
P575E0F00 = RAL 9010
P575G0F00 = RAL 9016
P57550F00 = RAL 8077
P580E0000 = RAL 9010
P580G0000 = RAL 9016
P58050000 = RAL 8077
P580E0F00 = RAL 9010
P580G0F00 = RAL 9016
P58050F00 = RAL 8077
P585E0000 = RAL 9010
P585G0000 = RAL 9016
P58550000 = RAL 8077
P585E0F00 = RAL 9010
P585G0F00 = RAL 9016
P58550F00 = RAL 8077
P590E0000 = RAL 9010
P590G0000 = RAL 9016
P59050000 = RAL 8077
P590E0F00 = RAL 9010
P590G0F00 = RAL 9016
P59050F00 = RAL 8077
KT-V 6R: 4 7 7 0 1 4 1 14
service class
4
Class 4: Very heavy usage. Hinges for doors that are subject to frequent and heavy usage.
durability
7
Class 7: 200,000 test cycles (only door hinges)
weight of test door
7
Class 7: Weight of test door 160 kg
fire resistance
0
class 0: not suited for use on fire and smoke-retardant doors (EN 1634-1)
safty of use
1
The fundamental requirements on the safety of use must be fulfilled by all hinges. That's why there is only class 1 here.
corrosion resistance
4
class 4: Corrosion resistance
intrusion protection
1
Class 1: Suited for use on intrustion-resistant doors based on the rating of the hinges' contribution to intrusion resistance for the respective intrusion-resistant door.
hinge class
14
Class 14: Hinges of this class fulfil demands due to very heavy usage
The classification 4 7 7 0 1 4 1 14 means:
A door hinge for (4) very heavy usage, which has undergone endurance testing of (7) 200,000 cycles, for a door with dimensions of up to (7*) 160 kg, not suited for (0) fire and smoke protection, possesses a (4) corrosion resistance of 240 h and can be used on (1) intrusion-resistant doors.
*) In addition to that, testing was conducted based on 20 cycles with 240kg and 5 cycles with 360kg and successfully completed in accordance with EN 1935.
