Hahn KT-N 6R UNIVERSALBAND MIT AUFDECKVERSCHRAUBUNG
KT-N 6R
KT-N 6R in RAL 9016
KT-N 6R offen

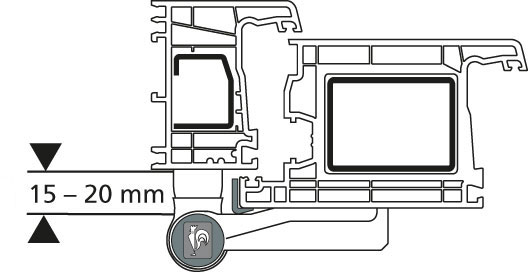

Schnittzeichnung KT-N 6R
Bemaßung KT-N

KT-N 6R

UNIVERSAL HINGE FOR REPRESENTATIV DOOR ENTRANCES

  • CE-cer­ti­fied according to EN 1935:2002, hinge class 14
  • Avail­able with KT-FIX fas­tener
  • Same ap­pear­ance re­tained after ad­just­ment
  • Can be used on left or right
  • Bear­ing point main­te­nance-free
  • Spe­cial fas­ten­ing screws in­cluded in the scope of de­liv­ery
  • Door hinges are largely pre-as­sem­bled
Piktogramm Hahn function 1000000 Zyklen Logo Logo SKG 2 Sterne CE geprüft Zeichen

Download

brochure

prospect KT-N 6R

Fitting

Installation Instructions

Declaration of performance

DECLARATION OF PERFORMANCE OF ALL PRODUCTS

NEW Catalogue – CLICK & SELECT

Catalogue excerpt – Current product

Add more products to the catalogue

Accessories

Drilling jig without tensioner - T316A0000
Drilling jig with tensioner - T316A0001
Drilling jig without tensioner for KT-FIX - T316A0F02
Drilling jig with tensioner for KT-FIX - T316A0F03

Individual parts

Door hinge blade with adjustment unit Indicate RAL colour - K400B0044
Bearing pin, complete - K400B0047
Cap (white) - K400K0023
Locking screw for cover strip - E3300802
