Hahn Türband 4 AT, Halbmaß Null

Türband 4 AT, Half measure 0

for slender frames

  • CE-certified according to EN 1935:2002, hinge class 14
  • Available for all major aluminium sections
  • A variety of possible combinations and mounting options for inward and outward opening doors, even for reversible profile and corner post constructions.
  • All metal parts of the hinge are pro­tected against cor­ro­sion
  • Special versions for intrusion-resistant doors
  • Can be used on left or right
  • Surfaces in anodised and all RAL colours
  • Bearing point maintenancefree
  • Continuous bearing pins made of stainless steel

Download

brochure

Declaration of performance

DECLARATION OF PERFORMANCE OF ALL PRODUCTS

NEW Catalogue – CLICK & SELECT

Catalogue excerpt – Current product

Add more products to the catalogue

Accessories 2-piece

Drilling jig - T133A0000
Drilling jig - T135A0000

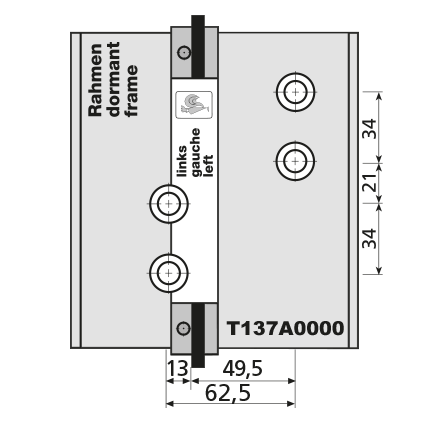

Drilling jig - T137A0000
Retrofit set as rapid-clamping drilling jig - T150A0001

Individual parts 2-piece

Frame hinge part - Item no. on request
Door hinge blade - Item no. on request
Cover strip for frame hinge part - Item no. on request
Cover strip for wing hinge part - Item no. on request

Accessories 3-piece

Drilling jig - T183A0000
Drilling jig - T185A0000
Drilling jig - T187A0000
Retrofit set as rapid-clamping drilling jig - T150A0001

Individual parts 3-piece

Frame hinge part - Item no. on request
Door hinge blade - Item no. on request
Cover strip for frame hinge part - Item no. on request
Cover strip for wing hinge part - Item no. on request
